11 wired interfaces + PoE
Nine Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port and one 10 Gigabit SFP+ port support flexible WAN and LAN designs; four ports can provide up to 90 W each within a 140 W total PoE budget.
Business · GeorgiaTalk with the team Ericsson Cradlepoint · E3000 branch platform

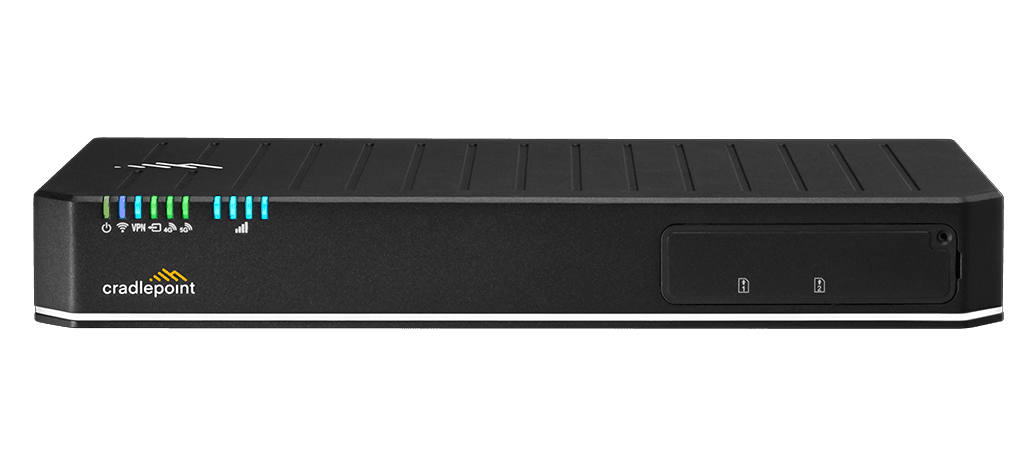

Ericsson Cradlepoint E3000
A higher-capacity 5G- or LTE-capable branch platform for offices, distribution sites, clinics, financial locations and stores that need routing, Wi-Fi 6, PoE switching and cellular resilience in one remotely managed system.
Highlights
What stands out.

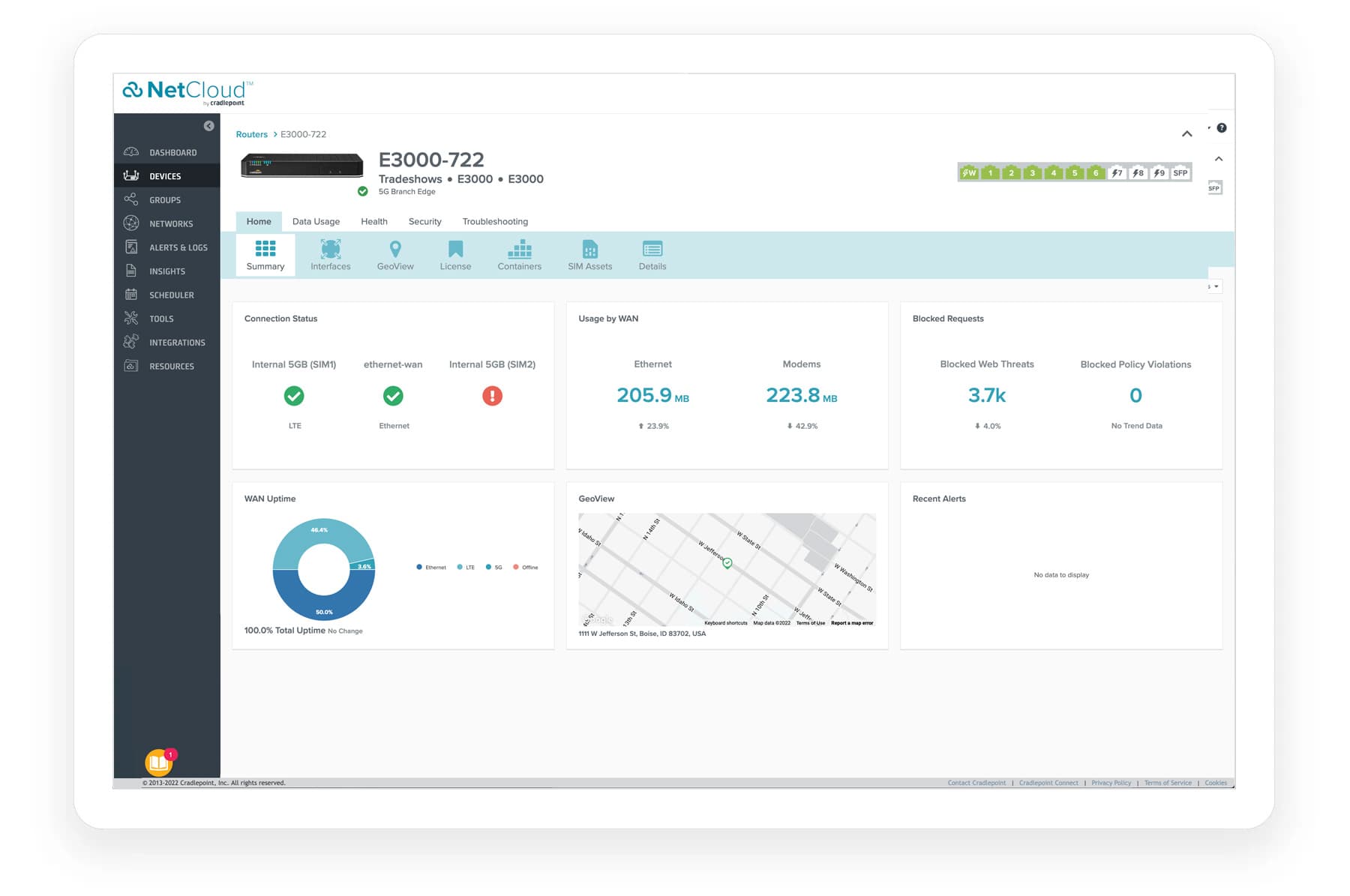

Router services in NetCloud
Review connection state, configure supported router services and troubleshoot a remote branch without sending IT to every location.

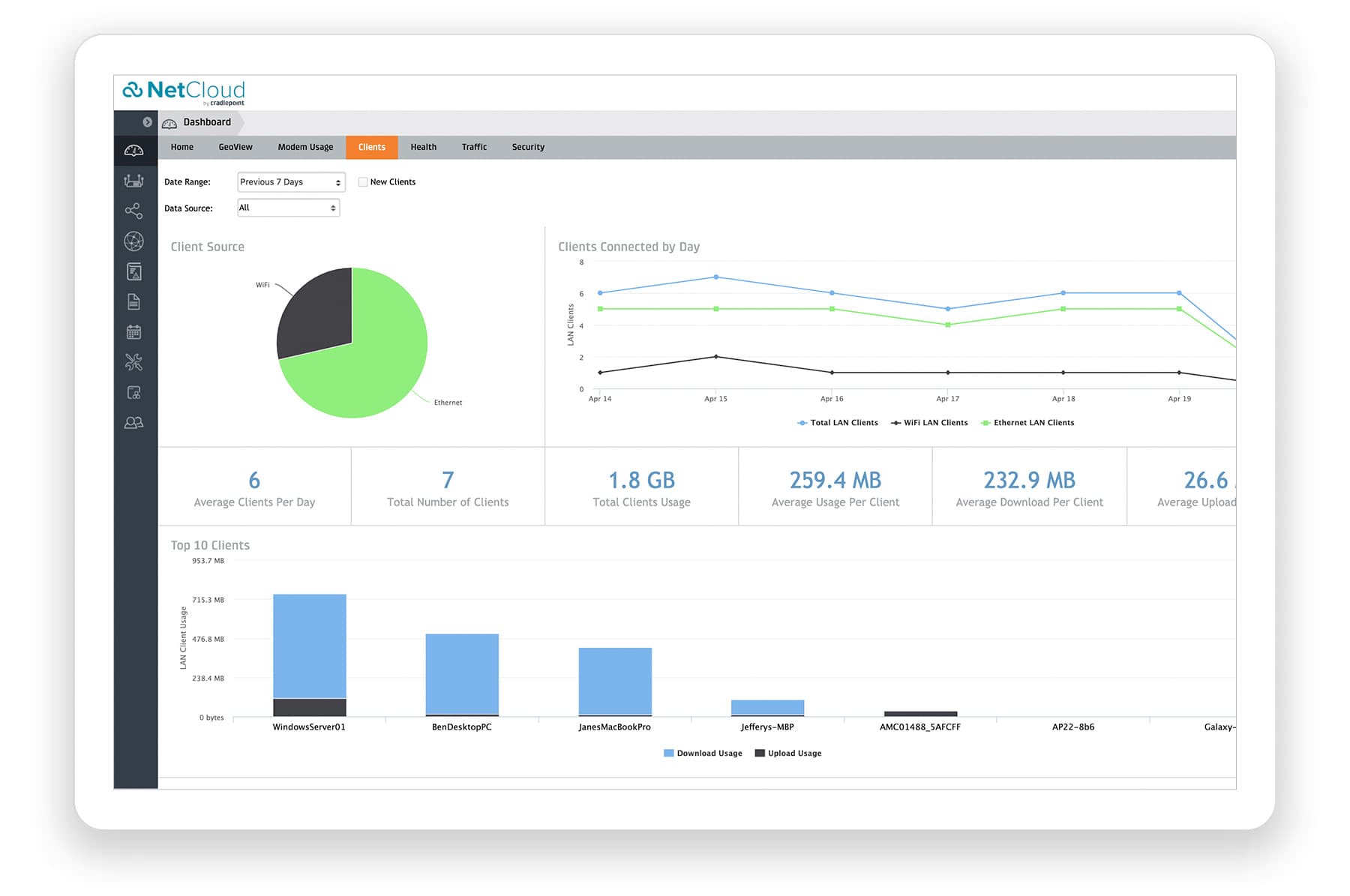

Clients and traffic in view
Use NetCloud client and traffic views to see how supported devices and connections are being used across the site.
A closer look
See the branch platform, router services and cloud-management experience.

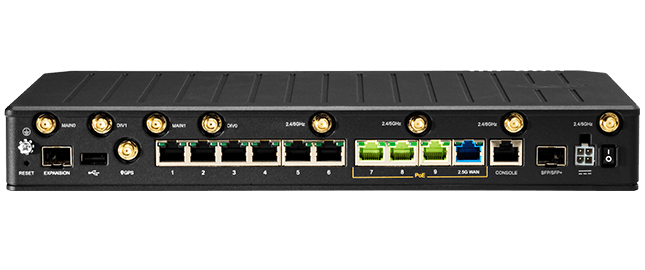

Connect more branch equipment
01 / 0411 wired interfaces + PoE
Nine Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port and one 10 Gigabit SFP+ port support flexible WAN and LAN designs; four ports can provide up to 90 W each within a 140 W total PoE budget.
Operate from anywhere
02 / 04Router services in NetCloud
Review connection state, configure supported router services and troubleshoot a remote branch without sending IT to every location.
Understand branch demand
03 / 04Clients and traffic in view
Use NetCloud client and traffic views to see how supported devices and connections are being used across the site.
Ericsson Cradlepoint · E3000 branch platform
04 / 04McDonough distribution office
Connect employees, cameras, phones and warehouse systems through one branch platform with cellular available for day-one service or resilience.
Business applications
Where it fits.
McDonough distribution office
Connect employees, cameras, phones and warehouse systems through one branch platform with cellular available for day-one service or resilience.
Multi-site healthcare, finance or retail
Standardize branch connectivity and policy while keeping configuration and health visible through Ericsson NetCloud.
Regional office opening
Start with cellular service, then retain it as a tested backup path after the wired connection is installed.
Specifications
Details that matter.
- Cellular options
- Embedded 5G NR or Cat 18 LTE Advanced Pro, depending on SKU
- Second cellular path
- Optional MC400 modular modem
- Ethernet
- Nine switchable Gigabit Ethernet LAN/WAN ports, one switchable 2.5 Gigabit Ethernet LAN/WAN port and one switchable 10 Gigabit SFP+ LAN/WAN port
- Power over Ethernet
- Four 802.3bt Type 3/4 ports, up to 90 W per port within a 140 W total PoE budget
- Wi-Fi
- Dual-radio, dual-band 4x4 MU-MIMO Wi-Fi 6; listed link rates up to 1,148 Mbps at 2.4 GHz and 2,400 Mbps at 5 GHz
- Wi-Fi security
- WPA, WPA2 and WPA3 options; exact mode depends on configuration
- Stateful firewall
- 2 Gbps in Ericsson wired appliance testing
- Application-aware services
- 1.5 Gbps in Ericsson wired appliance testing
- IPsec
- 400 Mbps point-to-point; 20 tunnels
- Site scale
- Typical client count of 100; 130,000 concurrent TCP sessions; up to 64 Layer 2 or Layer 3 VLANs
- USB, console and expansion
- One USB 2.0 Type-A port, one RJ45 console port, one MC400 modular-modem slot and one expansion slot
- Positioning
- One SMA GNSS antenna connection on the Cat 18 modem configuration
- Operating temperature
- 0 °C to 50 °C (32 °F to 122 °F)
- Power
- Included external supply; 54 V DC, 3.34 A output; listed typical consumption of 19 W before attached PoE load
- Size and weight
- 320 × 160 × 44 mm (12.6 × 6.3 × 1.7 in); 1.98 kg (4 lb 6 oz)
- Cloud management
- Ericsson NetCloud Service for Enterprise Branch; feature access depends on the selected package
