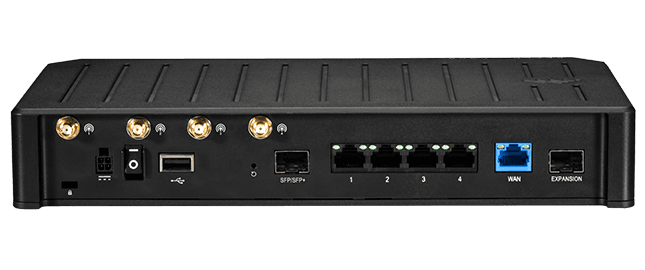

5 GbE + SFP+
Five switchable Gigabit Ethernet ports and one switchable 10 Gigabit SFP+ port support wired WAN and LAN connections without turning a small site into a rack project.
Business · GeorgiaTalk with the team Ericsson Cradlepoint · E300 branch router

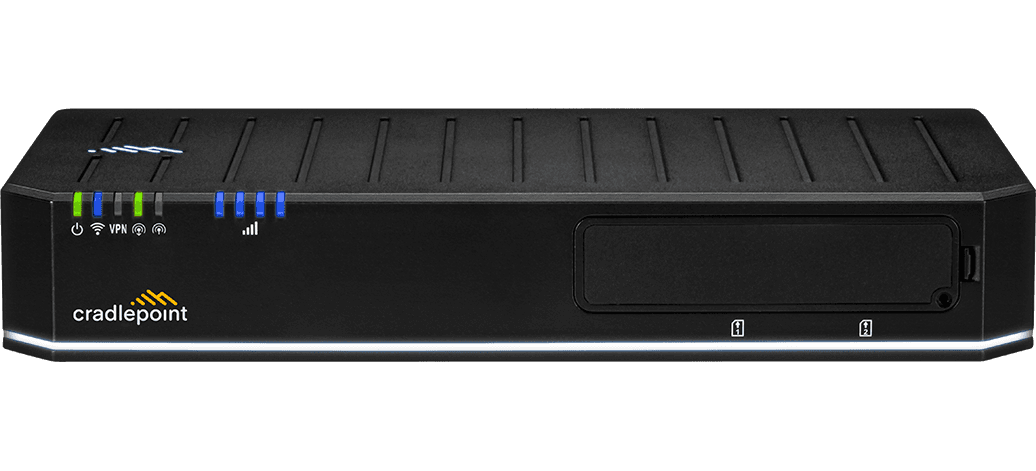

Ericsson Cradlepoint E300
A compact 5G- or LTE-capable branch router for stores, clinics, offices and temporary sites that need wired ports, Wi-Fi 6, cellular resilience and remote operations in one platform.
Highlights
What stands out.

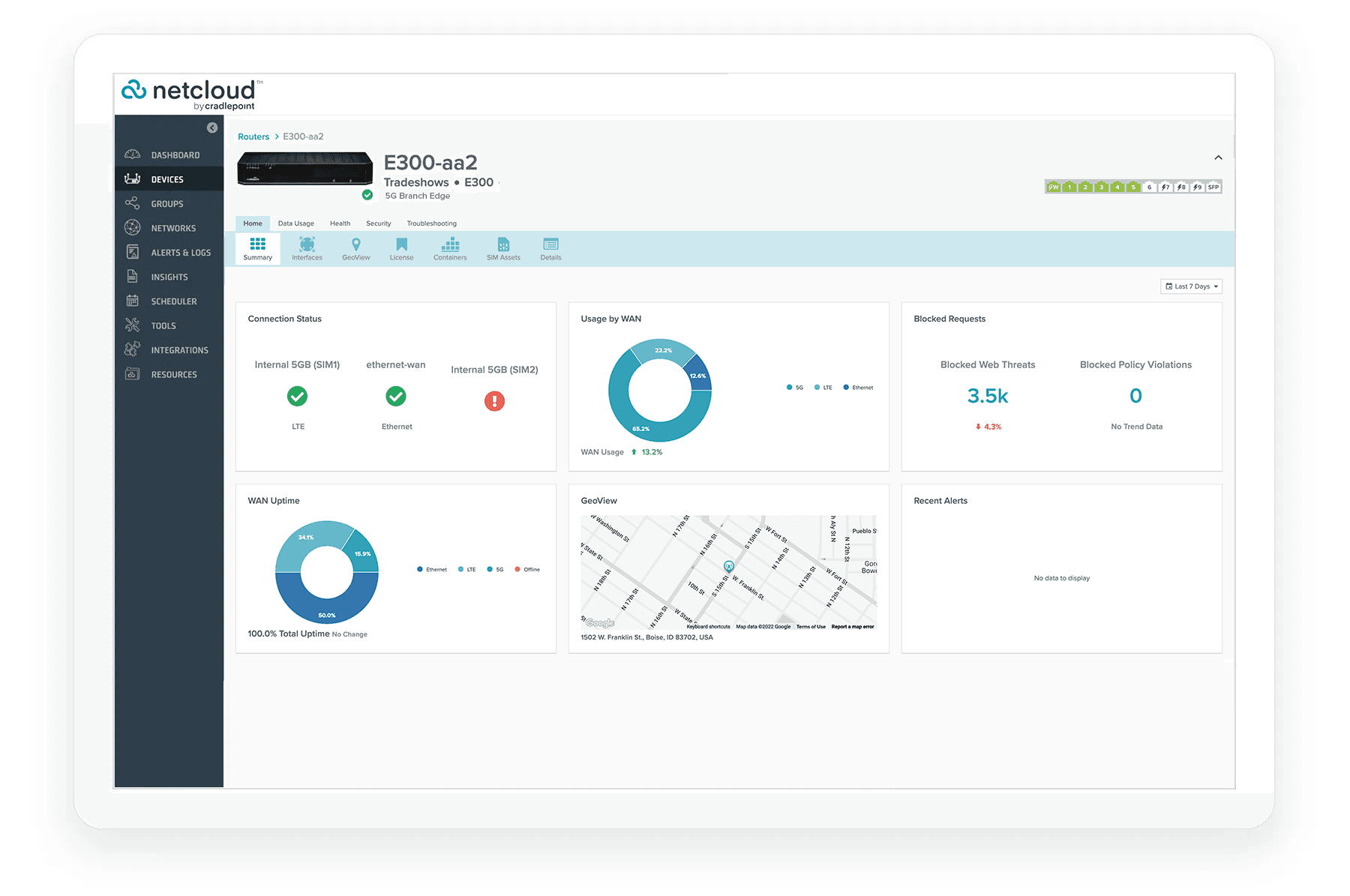

Router services in NetCloud
Review connection state, configure supported router services and troubleshoot a remote location without sending IT to every site.

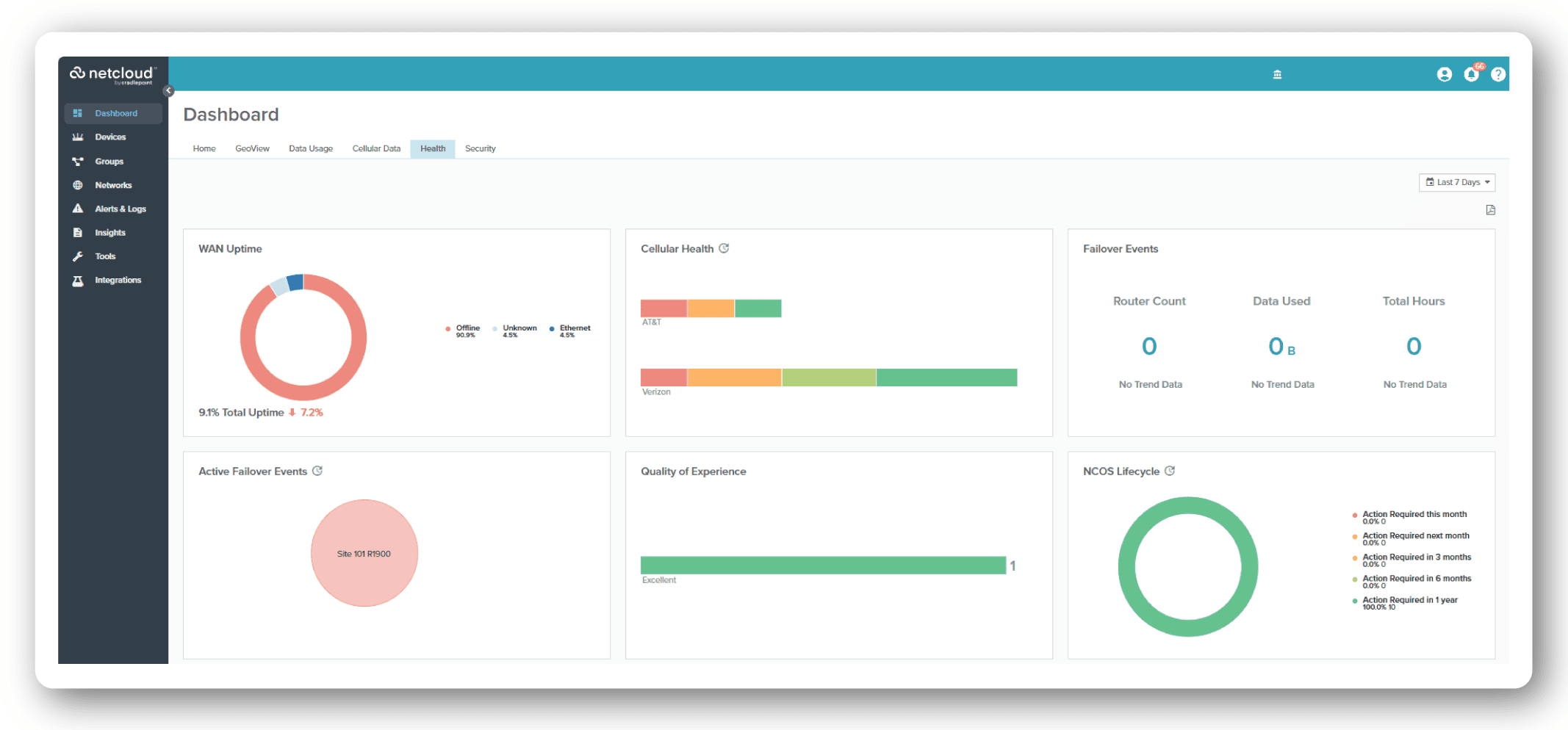

Branch health at a glance
Use NetCloud health and analytics views to spot WAN uptime, connection quality and active failures across supported E300 deployments.
A closer look
See the branch hardware, router services and NetCloud operating view.
Connect the branch
01 / 045 GbE + SFP+
Five switchable Gigabit Ethernet ports and one switchable 10 Gigabit SFP+ port support wired WAN and LAN connections without turning a small site into a rack project.
Operate from anywhere
02 / 04Router services in NetCloud
Review connection state, configure supported router services and troubleshoot a remote location without sending IT to every site.
See trouble sooner
03 / 04Branch health at a glance
Use NetCloud health and analytics views to spot WAN uptime, connection quality and active failures across supported E300 deployments.
Ericsson Cradlepoint · E300 branch router
04 / 04Atlanta pop-up or temporary office
Open with cellular connectivity before wired service arrives, then keep the branch manageable from the same NetCloud environment.
Business applications
Where it fits.
Atlanta pop-up or temporary office
Open with cellular connectivity before wired service arrives, then keep the branch manageable from the same NetCloud environment.
Retail, clinic or professional office
Use cellular to back up the wired connection and keep selected business systems on a separately tested secondary path.
Warehouse private-cellular routing
Use the appropriate E300 configuration only after validating the exact SKU, carrier certification and private-network design.
Specifications
Details that matter.
- Cellular options
- Embedded 5G NR or LTE, depending on SKU
- Second cellular path
- Optional MC400 modular modem
- Ethernet
- Five switchable Gigabit Ethernet LAN/WAN ports and one switchable 10 Gigabit SFP+ LAN/WAN port
- Wi-Fi
- Dual-radio, dual-band 2x2 MU-MIMO Wi-Fi 6; listed link rates up to 574 Mbps at 2.4 GHz and 1,200 Mbps at 5 GHz
- Wi-Fi security
- WPA, WPA2 and WPA3 options; exact mode depends on configuration
- Stateful firewall
- 940 Mbps in Ericsson wired appliance testing
- IPsec
- 400 Mbps point-to-point; 20 tunnels
- Site scale
- Typical client count of 50; 130,000 concurrent TCP sessions; up to 64 Layer 2 or Layer 3 VLANs
- USB and expansion
- One USB 2.0 Type-A port, one MC400 modular-modem slot and one expansion slot
- Positioning
- One SMA GNSS antenna connection; capability varies by modem configuration
- Operating temperature
- 0 °C to 45 °C (32 °F to 113 °F)
- Power
- Included external supply; 12 V DC, 3 A output; listed typical consumption of 13 W
- Size and weight
- 270 × 135 × 44 mm (10.6 × 5.3 × 1.7 in); 0.86 kg (1 lb 14 oz)
- Cloud management
- Ericsson NetCloud Service for Enterprise Branch; feature access depends on the selected package
